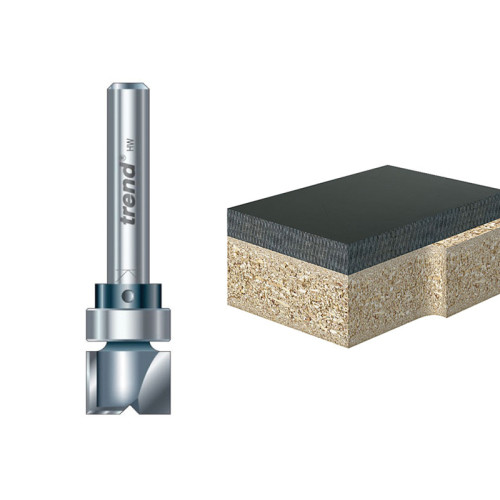

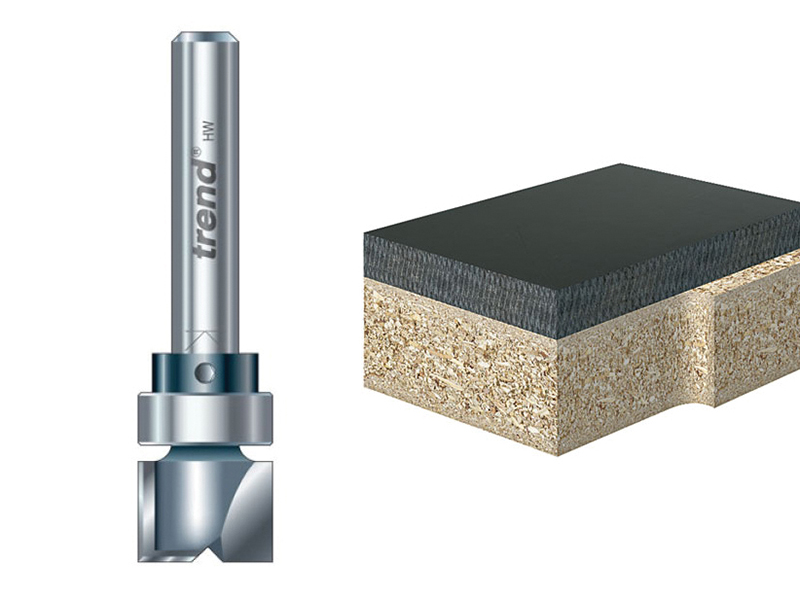

Profilers with shank mounted bearings for guidance, for use with router mounted above or below a table when following a template. Bearing guided cutters are suitable for both straight and curved work.
For profiling and rebating applications only. NOT for plunge, cutting or grooving.
A 3 mm approximate overlap should be left before copy profiling, also when using plastic laminate always allow laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
A 3 mm approximate overlap should be left before copy profiling, also when using plastic laminate always allow laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
Tooling Tungsten Carbide
1/4 in Shank.
Angle A = 90°
D = 12.7 mm
C = 25.4 mm
